Description

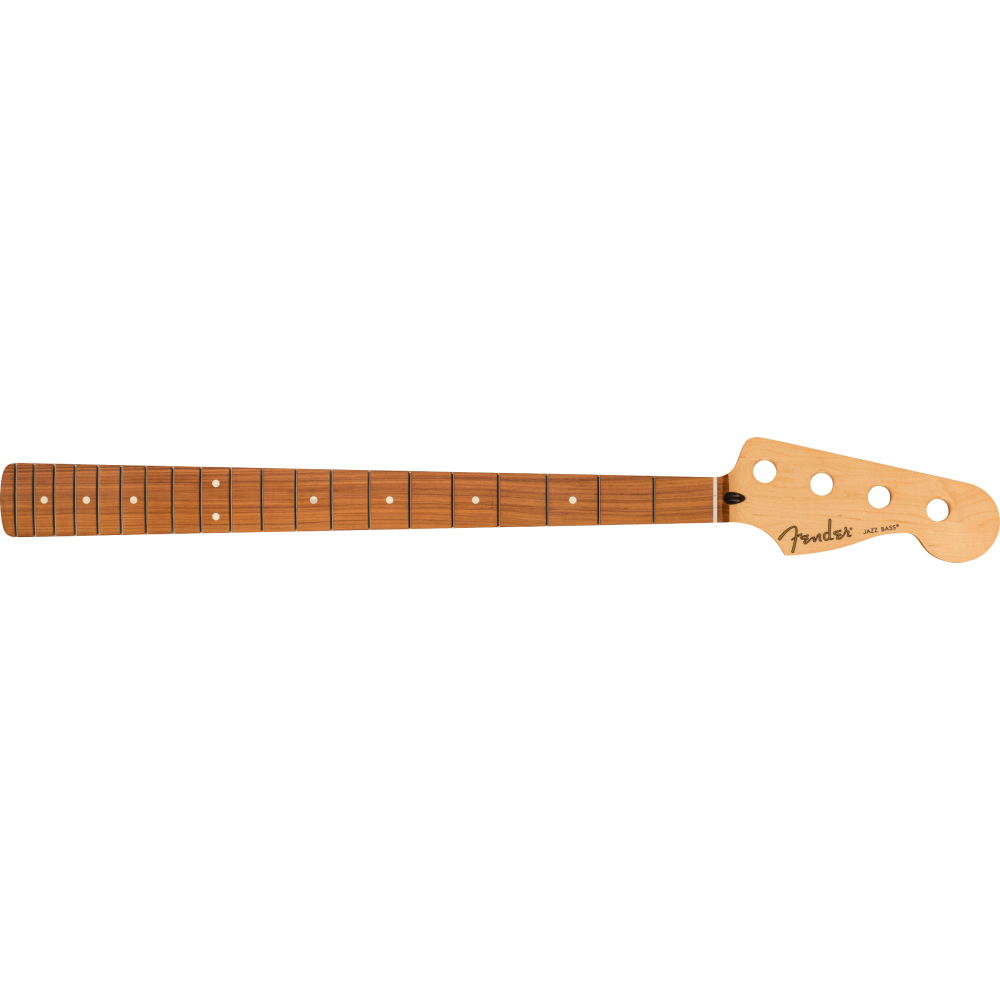

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Series Jazz Bass® guitar neck features a comfortable “modern C” profile and 9.5″-radius maple or pau ferro fingerboard with 20 medium jumbo frets.

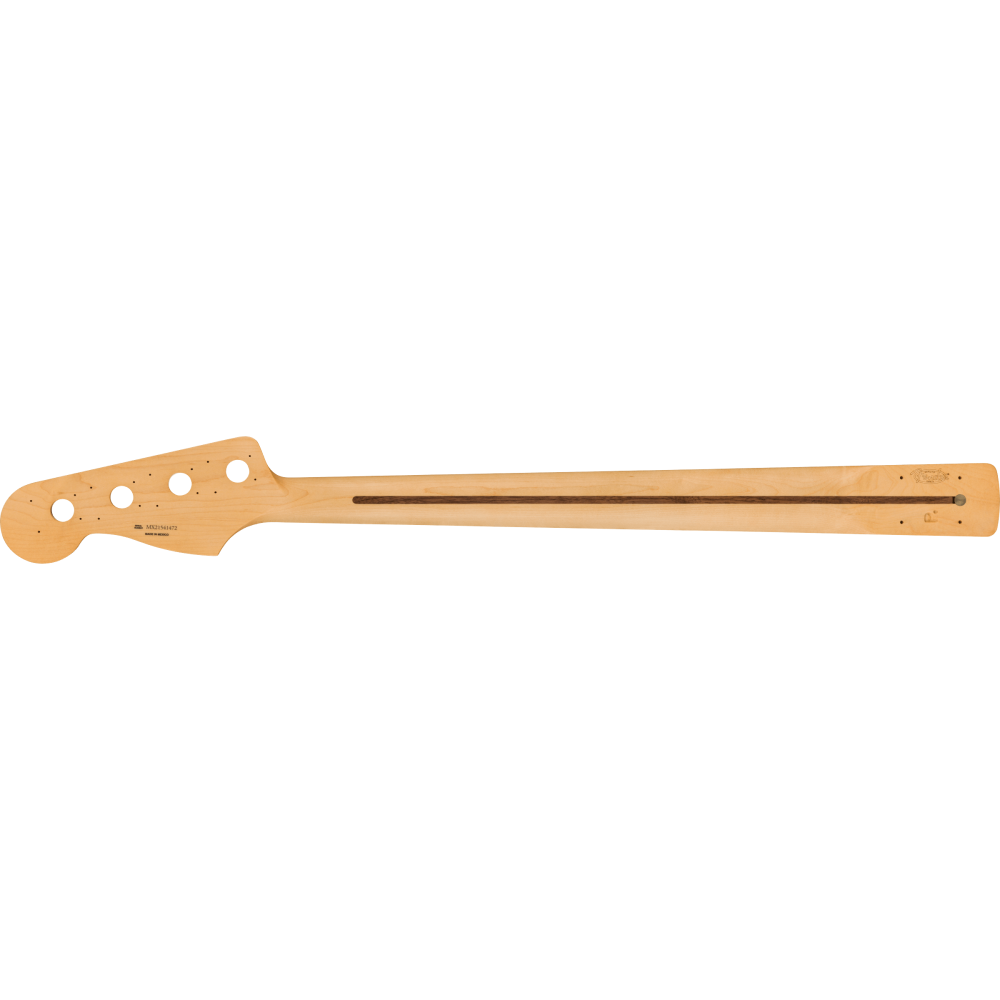

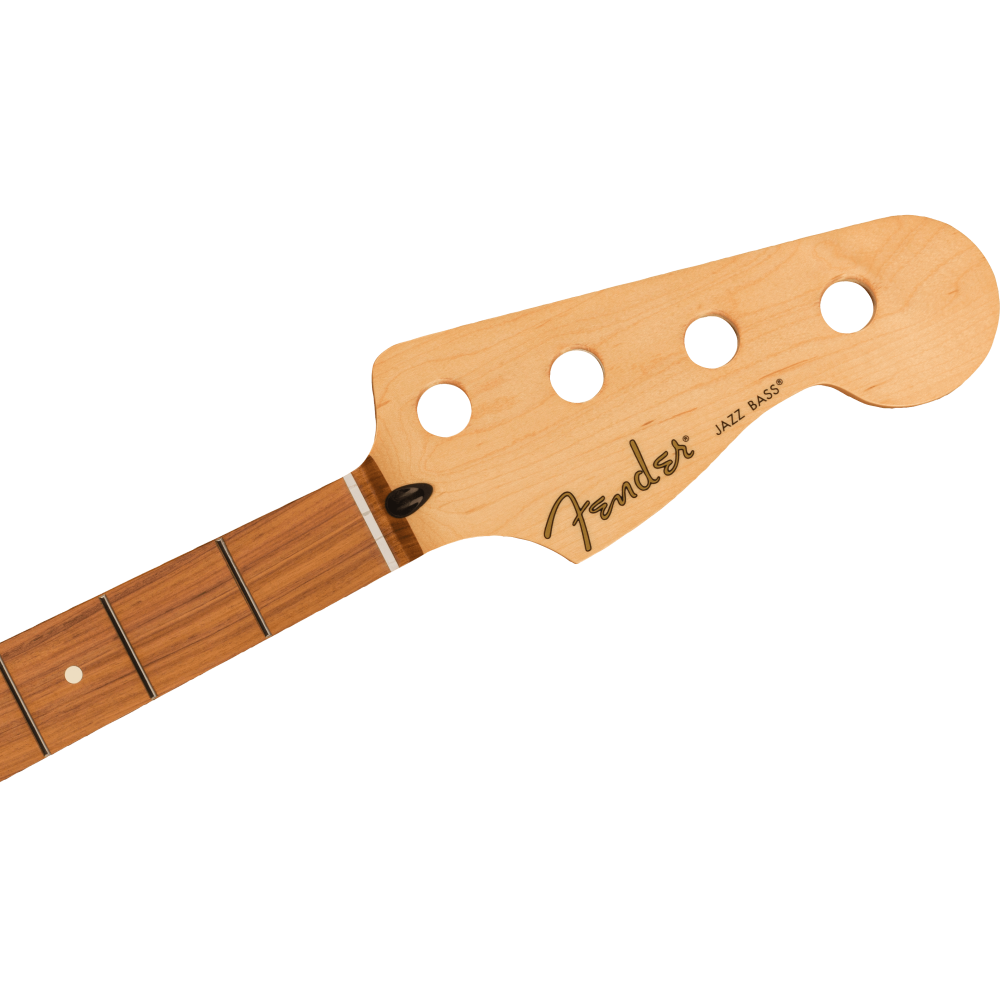

The nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it’s also serialized and stamped, with a genuine spaghetti logo headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.
FEATURES
- Maple neck with walnut “skunk” stripe
- Pau Ferro fingerboard with 9.5″ radius
- 20 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Four pre-drilled tuning machine holes
SPECIFICATIONS
- Series: Necks
- Orientation: Right-Hand
- Colour: Natural
- Country Of Origin: Mexico
- Neck Material: Maple with Walnut Stripe
- Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
- Neck Shape: Modern “C”
- Neck Thickness: 1st Fret – .800″ (20.32 mm), 12th Fret – .900″ (22.86 mm)
- Neck Mounting: 4-Bolt
- Fingerboard RadiusL 9.5″ (241 mm)
- Fingerboard Material: Pau Ferro
- Position Inlays: White Dot
- Side Dots: White
- Number of Frets: 20
- Truss Rod: Single Action, Head Adjust
- Truss Rod Nut: 3/16″ Hex Adjustment
- String Nut: Synthetic Bone
- Nut Width: 1.5″ (38.1 mm)
- Nut Material: Synthetic Bone
- Headstock Thickness: .540” (13.71 mm)
- Peg Hole Diameter: .734” (18.64 mm)
- Fret Size: Medium Jumbo
- Scale Length: 34″ (86.36 cm)
- Tuner Mounting Config: 4-Screw
